Forged Angle Globe Valve

Med Forged Steel Angle Globe Valves are designed and manufactured strictly to International Standards API 602, ASME B16 34 or DIN3202
OnLine Service
whatsapp Skype Online PDF Download
Bronze Globe Valve Bellow Seal Globe Valve
Description

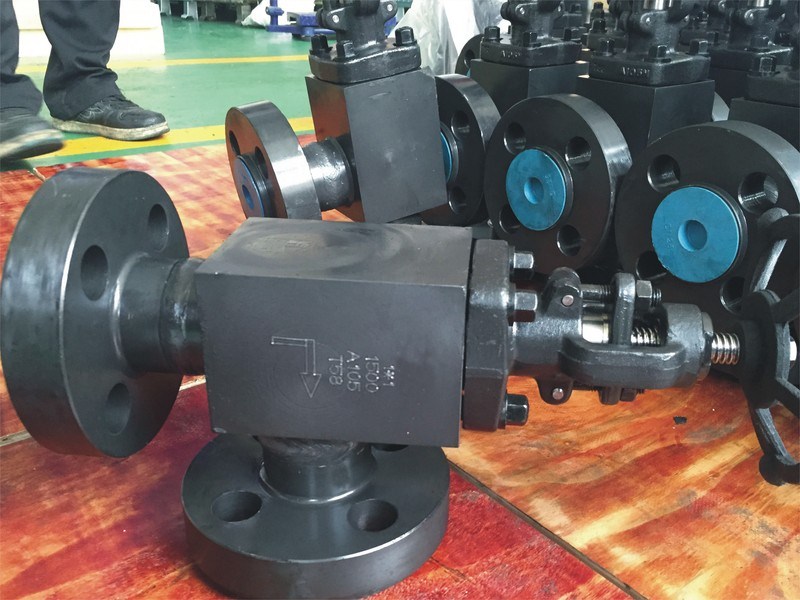

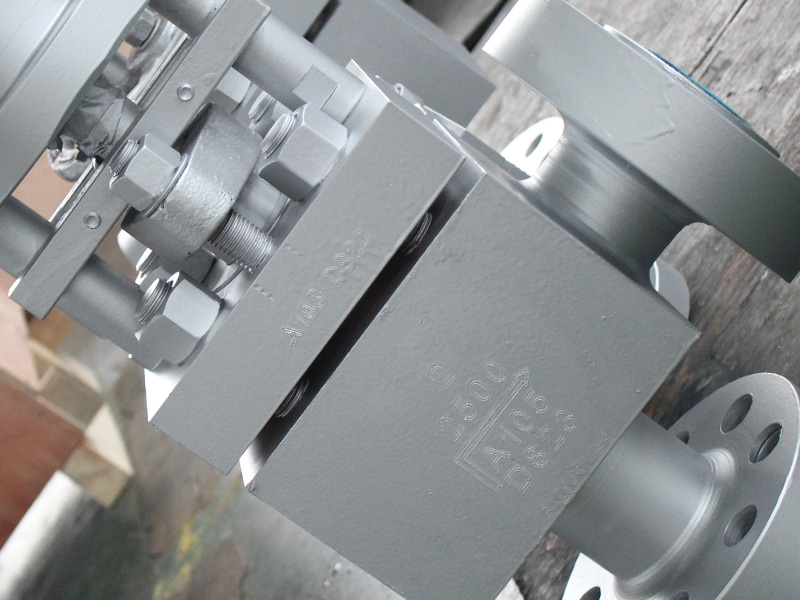

Med Forged Steel Angle Globe Valves are designed and manufactured strictly to International Standards API 602, ASME B16.34 or DIN3202, designed with a 90 degree between inlet and outlet to suitable for the angle pipe, Featured with compact structure & Tight shut off service.

Med Angle Type Globe Valves are with main Features as below:
» Design & Manufactured to API 602, ASME B16.34 or DIN3202 P.T Ratings to ASME B16.34
» Face to Face dimensions to ASME B16.10 Flanged Ends to ASME B16.5
» Butt-weld Ends to ASME B16.25 Valves Marking to MSS SP-25
» Inspect & Tested to API 598
» Size Ranges from 1/2” thru 4”
» Structured in Bolted Cover, Outside Screw and York
» Pressure Ratings from Class 150 to Class 1500, PN16 to PN260
» Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved
» Body Materials available in Carbon Steel, Low Carbon Steel, Alloy Steel, Stainless Steel, Duplex & Super Duplex Steel, Special Materials in Monel, Alu. Bronze etc.
» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials
» Actuations can be equipped with Handwheel, Gear Devices, Electric / Pneumatic or Hydraulic Actuators
» Optional Globe Check, Bypass system, Live Loading Packing& O-ring Seal
