Forged Globe Valve

You are here: Home » Products » Forged Globe Valve

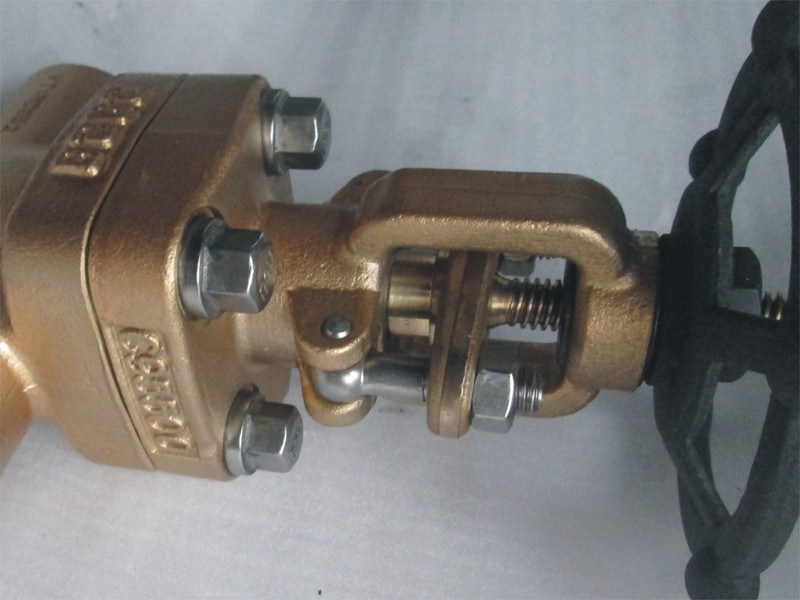

Bronze Globe Valve

Med Forged Bronze Globe Valves are designed and manufactured strictly to International Standards API 602, ASME B16 34, DIN3202 or Equivalent
OnLine Service
QQ Skype Online PDF Download
最后一页 Forged Angle Globe Valve
Description
Med Forged Bronze Globe Valves are designed and manufactured strictly to International Standards API 602, ASME B16.34, DIN3202 or Equivalent, a compact but extremely sturdy design for high pressure-temperature service, Solid CoCr alloy wedge (optional) ensures low friction and long service life, packing rings are precompressed to 4000 psi to provide a high integrity seal, for welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value and the body bonnet joint is strength-welded, offering double protection against leakage. (Body/bonnet threads and strength-weld), fully guided wedge reduces wear on seating surfaces, Optional design available with double packing, leak-off connection, live-loading and a packing blowout for easy removal of old packing.
Med Forged Bronze Globe Valves are with main Features as below:
» SizeRanges: 1/2” through 2”
» Pressure Ratings: ANSI #150 ~#800
» Standards compliance: API 602, ASME B16.34 or equivalents
» Materials: B61, B62 and etc.
» Ends Connections: Flanged(FF, RF), Screwed, Welded Ends to international standards
» OS&Y, Outside Stem and Yoke
» Metal-sealed-Bronze
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Reduce Port
