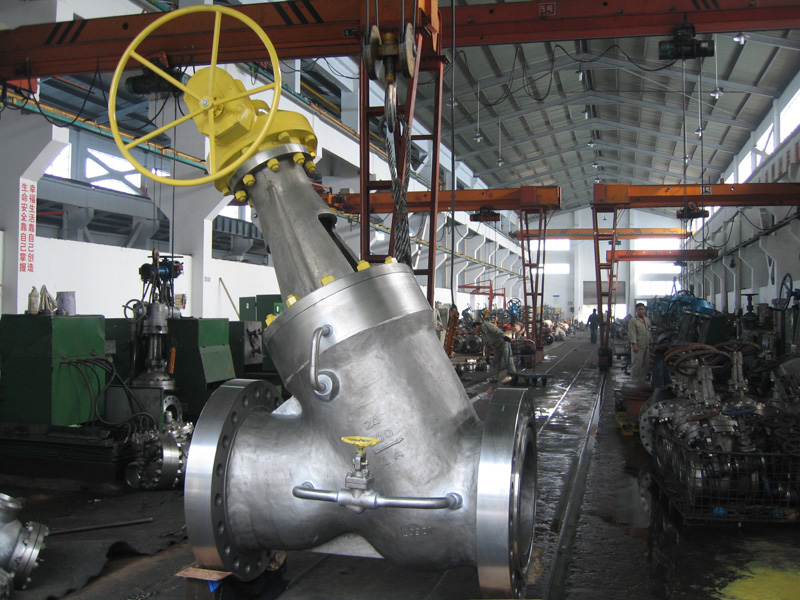

Y TYPE Globe Valve

You are here: Home » Products » Y TYPE Globe Valve

CF8 Stainless Steel Globe Valve, 24,300LB

Model No : GLV 19 Hits: 1433
OnLine Service
QQ Skype Online PDF Download
最后一页 第一页
Design standard: DIN 3356.
Body material: CF8.
Nominal diameter: DN100.
Pressure: PN16.
End connection: RF.
Face to face: DIN 3202-F32.
Working temperature: -196℃~+800℃.
Test and inspection: EN 12266-1/2.
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150 LBs~2500 LBs (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~+560℃.
