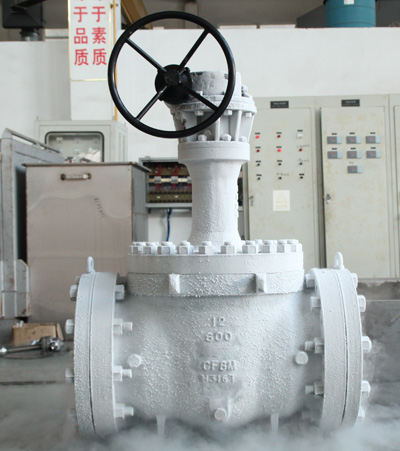

Cryogenic ball valves allow easy and smooth operation at high line pressure. Carefully aligned bearings assist low torque operation. The ball is fixed in position but free to turn. All Casted Trunnion Ball Valves manufactured by Vatac are with reliable high quality castings and fire safe design certified according to BS 6755, API607 & API 6FA. Meet all applicable ASME standards.
Cryogenic Ball Valves Manufactured by Vatac are available in types of Two Piece Split Body & Three Piece Bolted Body. Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Stem Blow-out Proof.
» SizeRanges: 1/2” through 40”
» Pressure Ratings: ANSI #150 to 2500
» Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
» Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
» Ends Connections: Flanged R.F, RTJ, Welded or Victaulic
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Regular Bore
» Double Block and Bleed
