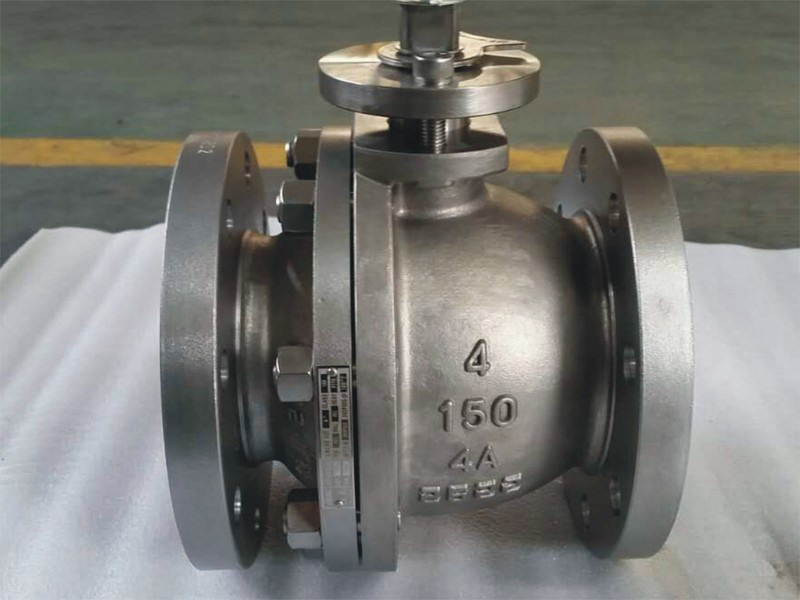

Med Cast Floating ball design supports the ball with two PTFE seats, one on the upstream and the other on the downstream side of the ball. The upstream pressure pushes the ball which compresses the downstream side seat to completely shut off fluid control. All Cast Floating Ball Valves manufactured by Med are with reliable high quality castings and fire safe design certified according to BS 6755, API 607& API 6FA. Meet all applicable ASME standards.
Cast Steel Floating Ball Valves Manufactured by Med are available in types of One Piece Uni-body, Two Piece Split Body & Three Piece Bolted Body. Designed and manufactured to the most updated international standards API 6D, ASME B16.34, BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Blow-out.
» Size Ranges: 1/2” through 10”
» Pressure Ratings: ANSI #150 to 600
» Standards compliance: API 6D, BS 5351, ASME B16.34, DIN 3202 or equivalents
» Materials: Cast Carbon Steel, Stainless Steel, Duplex or Other Specials
» Ends Connections: Flanged R.F, RTJ, Welded or Grooved
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Regular Bore
