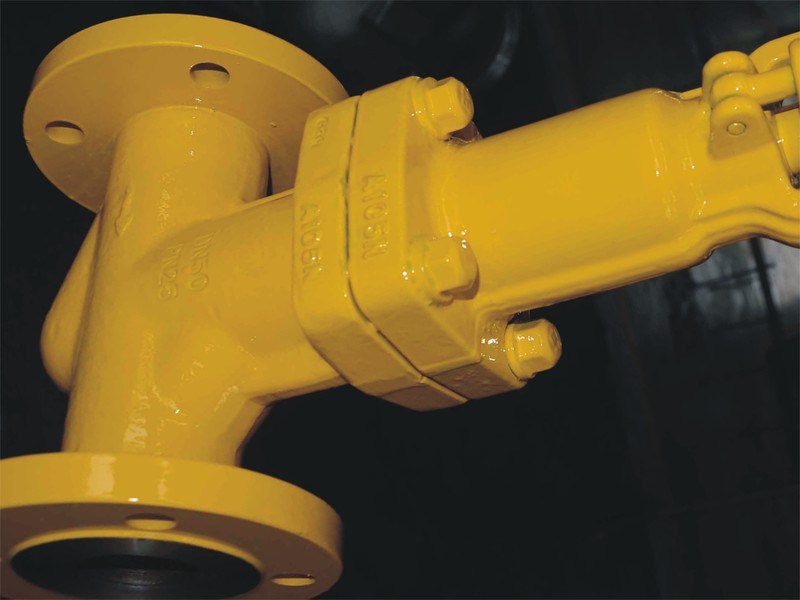

Bellow Seal Globe Valve

The Med Bellow Sealed Globe valves have been solving fluid control problems in Steam, Boiling and other general industrial applications
OnLine Service
whatsapp Skype Online PDF Download
Forged Angle Globe Valve Stainless Steel Globe Valve
Description
The Med Bellow Sealed Globe valves have been solving fluid control problems in Steam, Boiling and other general industrial applications for over 30 years. Bellows seal gate valves reduce fugitive emissions of toxic, lethal, or regulated fluids/gases, minimize maintenance, reduce life cycle costs, and optimize productivity in process plants. This includes steam, cryogenic, and vacuum systems.
Long cycle life bellows (3000 cycles): Designed and qualification tested for high pressure/temperature service.
Bellows monitoring port (optional): A plug can beconnected with the space above the bellows to monitor performance.
Two secondary stem seals: a) Backseat in open position; b) Graphite packing.
Superior seating faces: Seats CoCr alloy hardfaced and wedge is solid CoCr alloy.

STANDARDS COMPLIANCE:
» DIN 3356, BS 5160, ASME B16.34, API 602
» ASME B16.10, EN558-1 / DIN 3202
» ASME B16.5, ASME B16.11, ASME B1.20.1, DIN 2543~2545, EN 12627
» ISO 5208, API 598, DIN 3230, MSS SP-117
» Sizes: DN15 through DN50
» Body Styles: End connections Flanged, Welded or Threaded Ends
» Pressure Class: ANSI CL150 to CL900, PN16 to PN64.
» Actuations: Hand wheel, Electric, Pneumatic, Hydraulic or E-Hydraulic
