Y Globe Valve

Med Y Globe Valve s are designed and manufactured strictly to International Standards BS1873, ASME B16 34 or DIN3202
OnLine Service
QQ Skype Online PDF Download
Angle Globe Valve Pressure Seal Globe Valve
Description

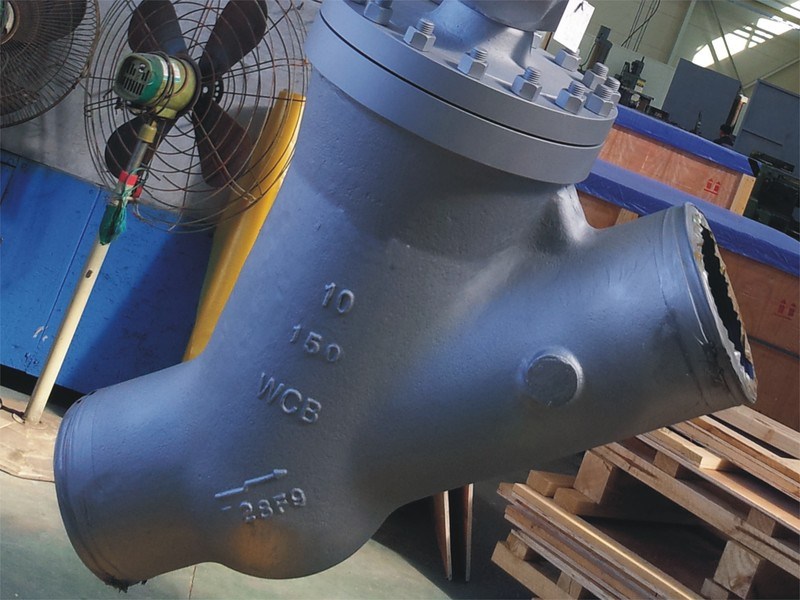

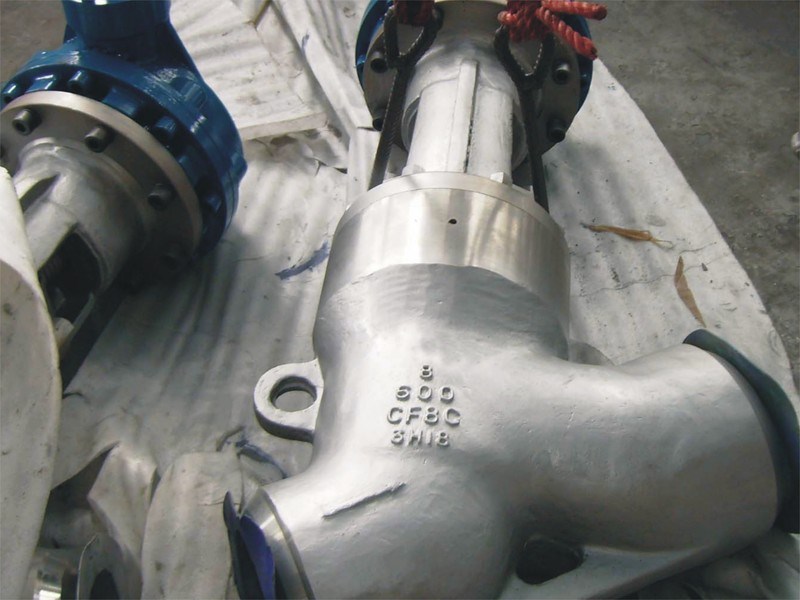

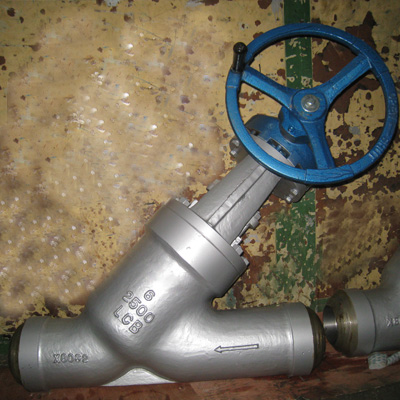

Med Y Globe Valve s are designed and manufactured strictly to International Standards BS1873, ASME B16.34 or DIN3202, designed as Y Type between inlet and outlet to suitable for the Y Angle pipe, Featured with compact structure & Tight shut off service.

Med Y Globe Valves are with main Features as below:
» Design & Manufactured to BS 1873, ASME B16.34 or DIN3202 P.T Ratings to ASME B16.34
» Face to Face dimensions to ASME B16.10 Flanged Ends to ASME B16.5
» Butt-weld Ends to ASME B16.25 Valves Marking to MSS SP-25
» Inspect & Tested to API 598
» Size Ranges from 1 1/2” thru 24”
» Structured in Bolted Cover, Outside Screw and York
» Pressure Ratings from Class 150 to Class 1500, PN16 to PN260
» Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved
» Body Materials available in Cast Carbon Steel, Cast Low Carbon Steel, Cast Alloy Steel, Cast Stainless Steel, Cast Duplex & Super Duplex Steel, Special Materials in Cast Monel, Alu. Bronze etc.
» Trim Materials available in 13%Cr, F11, F22, SS304, SS304L, SS316, SS316L and other specials
» Actuations can be equipped with Handwheel, Gear Devices, Electric / Pneumatic or Hydraulic Actuators
» Optional Globe Check, Bypass system, Live Loading Packing& O-ring Seal
